LC Series LiFePO4 Energy Storage Batteries

Series LC Series

LiFePO4 energy storage with 25.6V and 51.2V configurations, front-panel battery monitoring and standard RS232, RS485 and CAN interfaces.

LC100 25.6V
LC230 25.6V
LC300 25.6V
LC100 51.2V
LC230 51.2V
LC300 51.2V
LC314 51.2V

Cell chemistry: LiFePO4
Rated voltage: 25.6 / 51.2 VDC
Available energy: 2560-16076 Wh
Module connections: 1-15

Request a Quote View Specifications

Tell us your quantity, market and product requirements.

PRODUCT INFORMATION

Product overview

LC Series

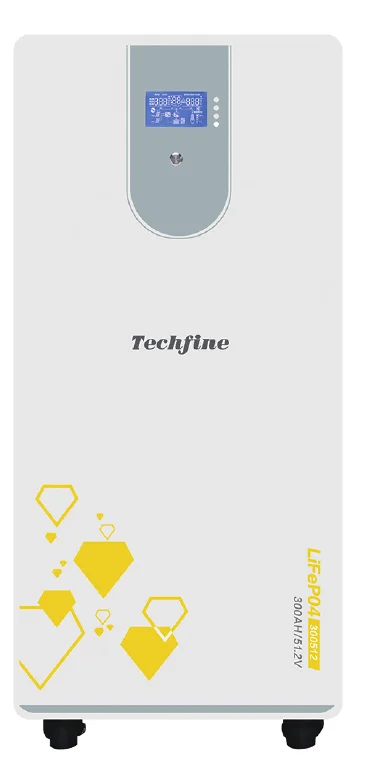

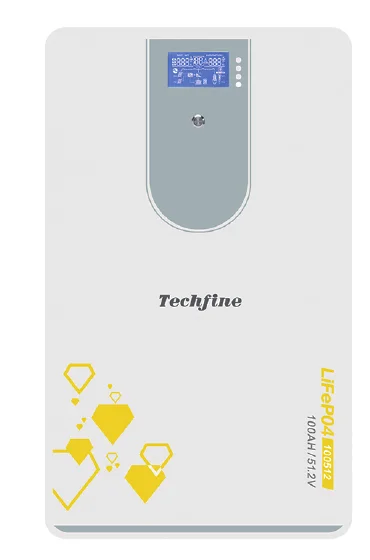

The LC Series offers seven lithium iron phosphate battery models for home energy storage and backup power. The family includes compact and wheeled enclosures as illustrated in the catalog.

Each model has its own energy, current, weight and dimension ratings. The table below keeps the catalog model names and energy values separate for comparison.

The series provides charging equalization, SOC and SOH estimation, LED status indication and an LCD display. Applications listed in the catalog include home solar storage, UPS / EPS, emergency backup power and communication systems.

TECHNICAL INFORMATION

Product specifications

LC Series

Compare models below. On smaller screens, scroll the table horizontally.

Model comparison
Parameter	LC100 25.6V	LC230 25.6V	LC300 25.6V	LC100 51.2V	LC230 51.2V	LC300 51.2V	LC314 51.2V
Rated voltage (VDC)	25.6	25.6	25.6	51.2	51.2	51.2	51.2
Available energy (Wh)	2560	5888	7168	5120	11776	15360	16076
Voltage range (VDC)	21.6-29.2	21.6-29.2	21.6-29.2	43.2-58.4	43.2-58.4	43.2-58.4	43.2-58.4
Maximum continuous discharge current (A)	100	200	200	100	200	200	200
Maximum output power (W)	2560	5120	5120	5120	10240	10240	10240
Recommended charging current (A)	50	115	140	50	115	140	157
Cycles (standard charge/discharge at room temperature)	≥6000	≥6000	≥6000	≥6000	≥6000	≥6000	≥6000
Depth of discharge	≥95%	≥95%	≥95%	≥95%	≥95%	≥95%	≥95%
Module connections	1-15	1-15	1-15	1-15	1-15	1-15	1-15
Communication interfaces (standard)	RS232 / RS485 / CAN	RS232 / RS485 / CAN	RS232 / RS485 / CAN	RS232 / RS485 / CAN	RS232 / RS485 / CAN	RS232 / RS485 / CAN	RS232 / RS485 / CAN
Net weight (kg)	28	51	65	49	96	117	117
Dimensions (L × W × H) (mm)	367 × 412 × 165	442 × 394 × 231	510 × 394 × 230	629 × 367 × 175	394 × 680 × 243	820 × 394 × 230	820 × 394 × 230

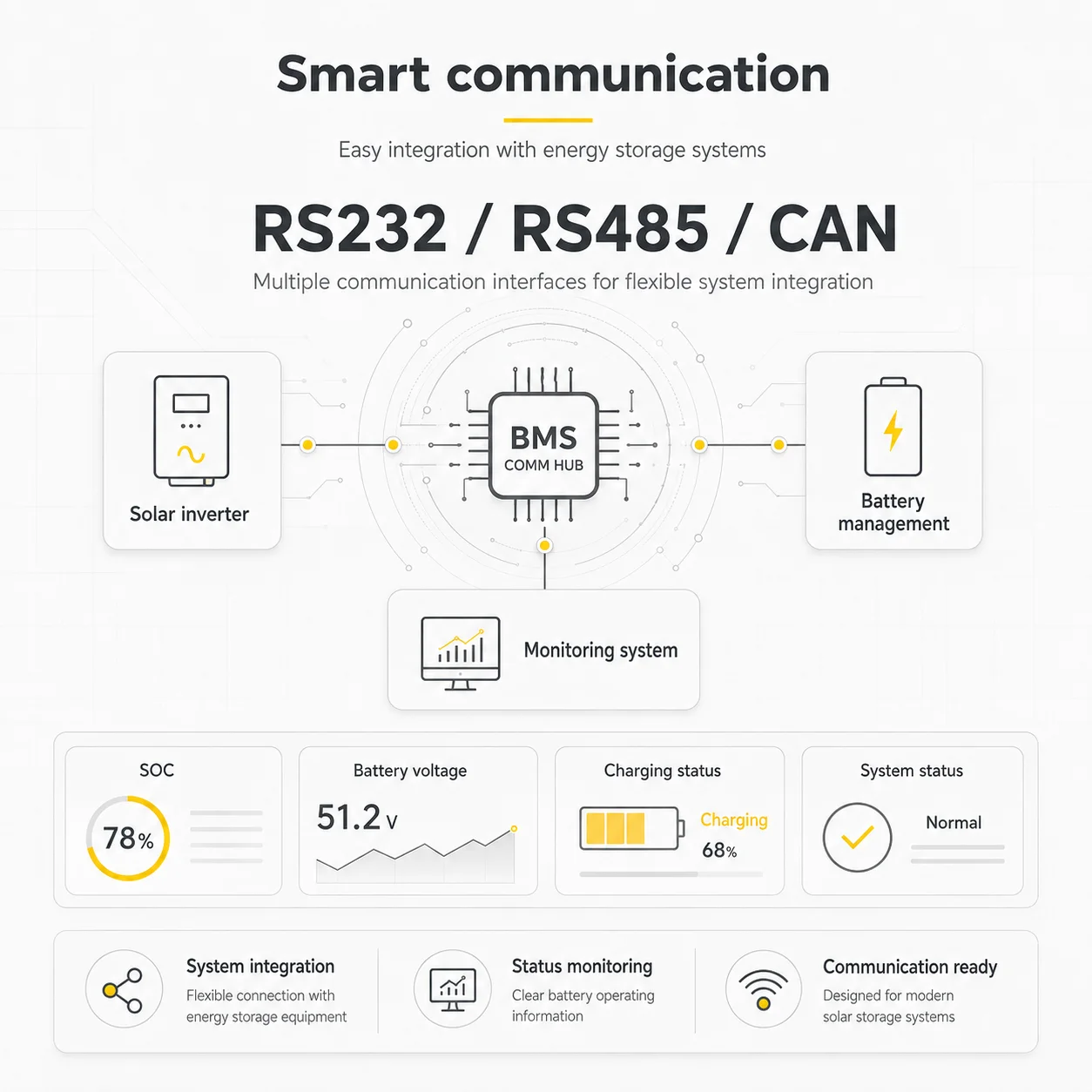

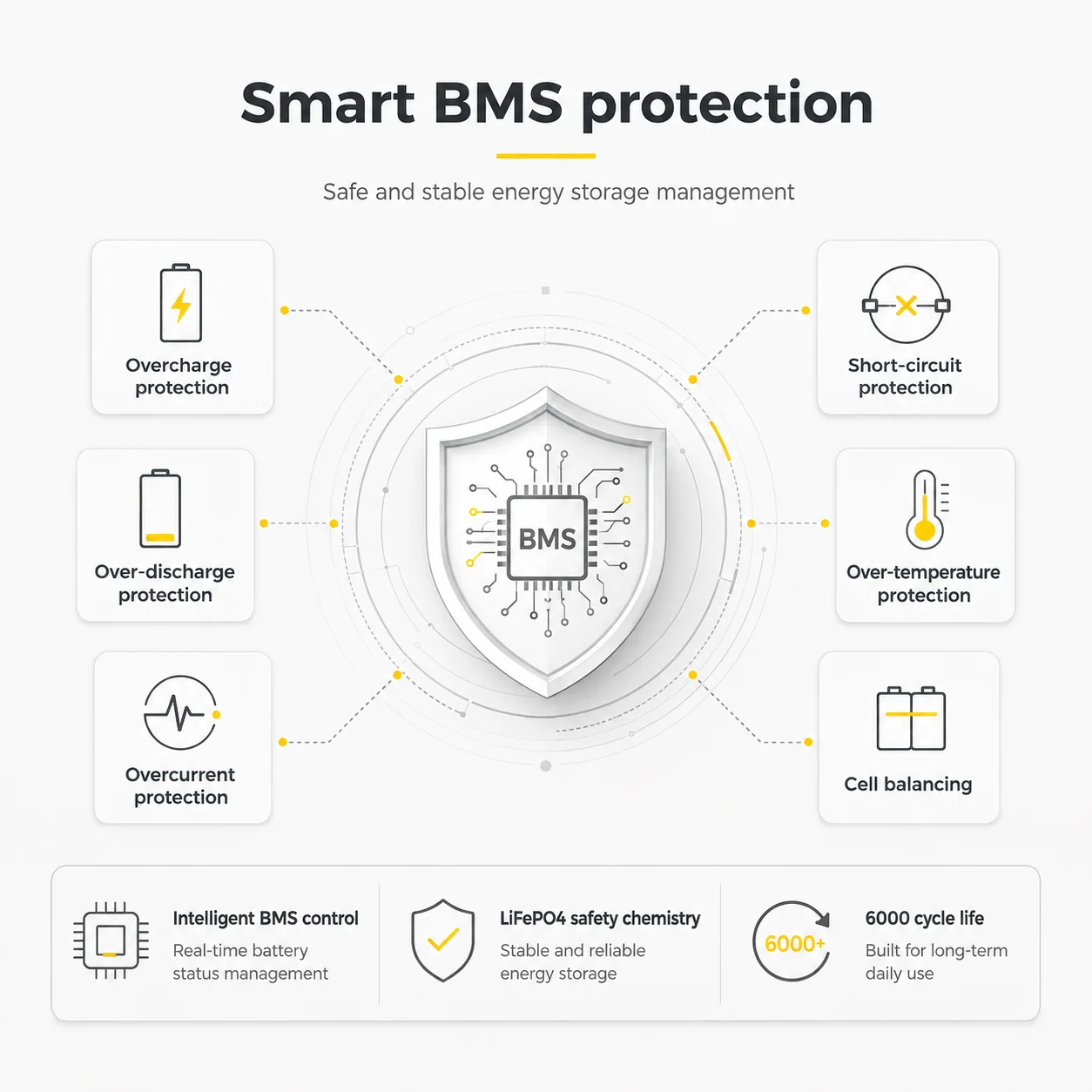

Cell balancing and battery monitoring Charging equalization, SOC and SOH estimation help monitor battery condition. The front panel combines an LED status indicator with an LCD display. Communication interfaces RS232, RS485 and CAN interfaces are listed as standard. Confirm the protocol and configuration required for the selected inverter. Battery protection Protection covers overcharge, over-discharge, overcurrent, overvoltage, short circuit and high temperature. Low power operation The series provides sleep and wake-up modes, with battery capacity and cycle-count monitoring.

DOCUMENTATION & ENQUIRIES

Product support

Documents & resources

Contact our team for model-specific specifications, manuals and available supporting documents.

Request Product Documents Explore product resources

Questions & answers

What is the operating temperature range?

The catalog lists -10°C to +50°C for discharge and 0°C to +60°C for charging.

How many battery modules can be connected?

The series specification lists 1-15 module connections. Confirm the selected model and system configuration with our team.
