UD Series Solar Inverters
Pure sine wave solar inverters from 800W to 1600W, with 12V or 24V battery configurations and PWM solar charging. Compare all four UD models below.
- UD1012AP
- UD1512AP
- UD1524AP
- UD2024AP
- Rated output power
- 800–1600 W
- Battery voltage
- 12 / 24 VDC
- AC input voltage
- 220 VAC (standard)
- Solar charge controller
- PWM
Tell us your quantity, market and product requirements.
PRODUCT INFORMATION
Product overview
UD SeriesThe UD Series combines pure sine wave AC output, PWM solar charging and selectable UPS / inverter transfer modes in one enclosure. Four models cover 800W, 1200W and 1600W rated output, with 12V and 24V battery configurations.
The standard AC configuration is 220V. The series specification also lists a custom 110V output option; confirm the required configuration before ordering.

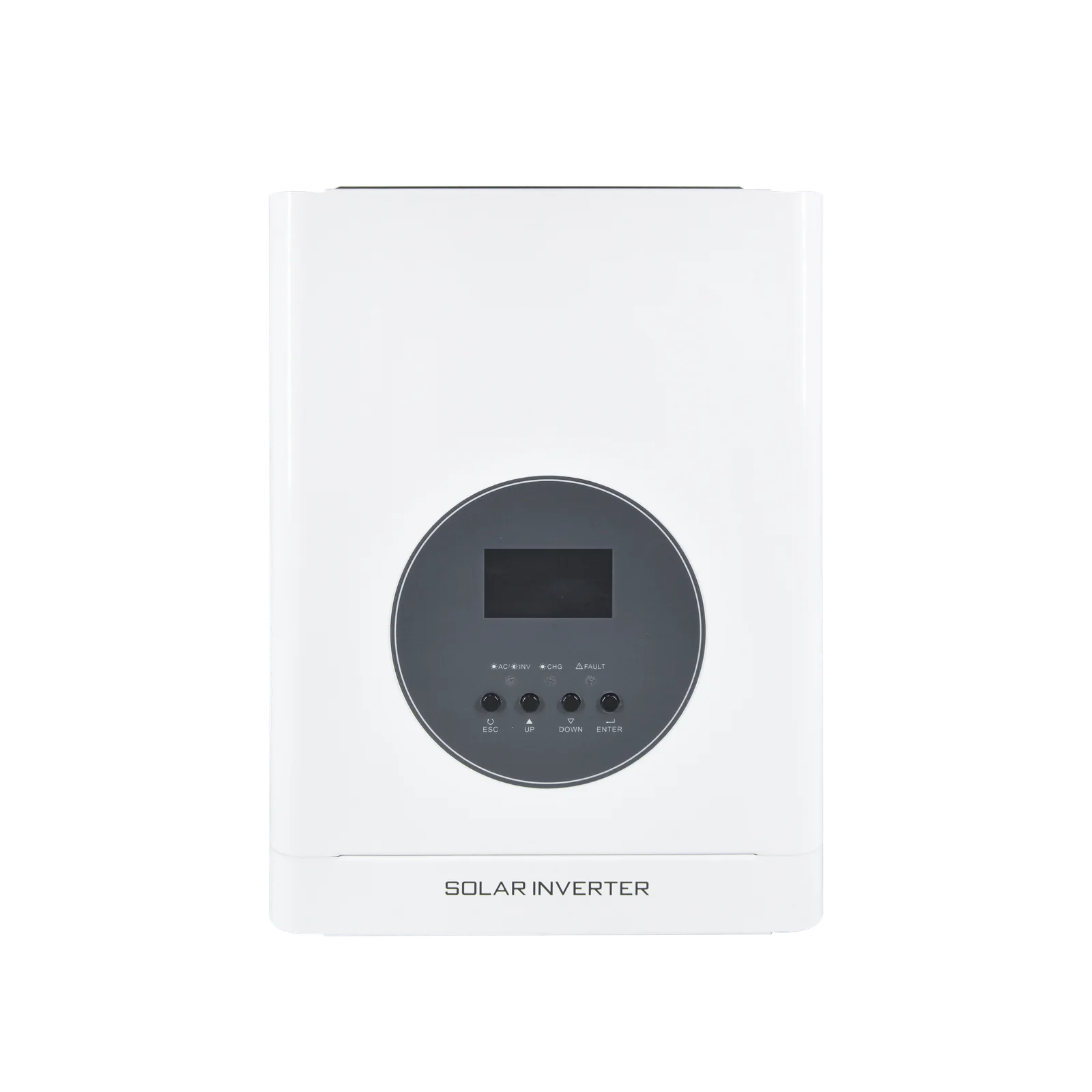

The front display provides AC voltage and frequency, PV voltage and current, output voltage and frequency, battery voltage and load current. The series includes overload, short-circuit and low-voltage protection in inverter mode.
TECHNICAL INFORMATION
Product specifications
Compare models below. On smaller screens, scroll the table horizontally.
| Parameter | UD1012AP | UD1512AP | UD1524AP | UD2024AP |
|---|---|---|---|---|
| Rated output power (W) | 800 | 1200 | 1200 | 1600 |
| Battery voltage (VDC) | 12 | 12 | 24 | 24 |
| Battery charging voltage (VDC) | 13.7 | 13.7 | 27.4 | 27.4 |
| AC charge current, maximum (A) | 27 | 40 | 20 | 27 |
| PV array power, maximum (W) | 800 | 800 | 1600 | 1600 |
| Solar input voltage range (VDC) | 15–50 | 15–50 | 30–105 | 30–105 |
| PV open-circuit voltage, maximum (VDC) | 50 | 50 | 105 | 105 |
DOCUMENTATION & ENQUIRIES
Product support
Documents & resources
Contact our team for model-specific specifications, manuals and available supporting documents.
Questions & answers
Does the UD Series use PWM or MPPT solar charging?
The supplied UD Series specification lists PWM solar charging for all four models.
Is a 110V configuration available?
The series specification lists 220VAC as standard and a custom 110VAC output option. Confirm the required voltage and configuration with our team before ordering.
Which battery configuration should I use?
UD1012AP and UD1512AP use a 12V battery system; UD1524AP and UD2024AP use a 24V battery system. The series table lists several battery types, including lead-acid, gel and lithium. Confirm the charging settings and compatibility for your chosen battery and model.
