Stellar Series AC Chargers

Series Stellar AC Series

AC charging configurations from compact wall-mounted units to floor-standing chargers, with listed power options from 7 to 84kW.

7 / 11 / 22kW wall / pedestal

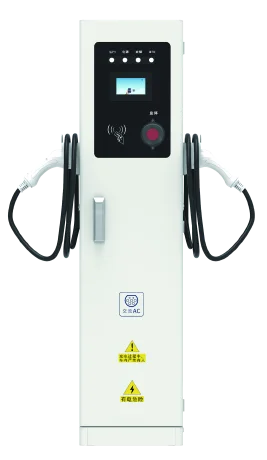

7 / 14kW floor-standing

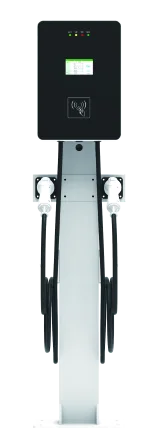

14kW wall / pedestal
42 / 84kW floor-standing

Listed power options: 7–84 kW
Installation: Wall / pedestal / floor-standing
Protection rating: IP55; 42 / 84kW: IP54
Cable length: 4 / 5 m

Request a Quote View Specifications

Tell us your quantity, market and product requirements.

PRODUCT INFORMATION

Product overview

Stellar AC Series

The Stellar AC Series includes four configurations: 7 / 11 / 22kW wall or pedestal units, 7 / 14kW floor-standing units, a 14kW wall or pedestal unit, and 42 / 84kW floor-standing units.

Enclosure, supply voltage, current, screen and cable length vary by configuration. Compare the specifications below to select the configuration for your site.

The series supports card or QR-code charging and multiple charging modes. Communication and operating setup should be selected for the intended site.

TECHNICAL INFORMATION

Product specifications

Stellar AC Series

Compare models below. On smaller screens, scroll the table horizontally.

Model comparison
Parameter	7 / 11 / 22kW wall / pedestal	7 / 14kW floor-standing	14kW wall / pedestal	42 / 84kW floor-standing
Rated power (kW)	7 / 11 / 22	7 / 14	14	42 / 84
Installation	Wall / pedestal	Floor-standing	Wall / pedestal	Floor-standing
Input / output voltage	AC220V ±15% / AC380V ±15%	AC220V ±15%	AC220V ±15%	AC380V ±15%
Maximum output current (A)	16 / 32	32 / 64	64	64 / 128
Cable length (m)	4	5	5	5
User interface	No screen / 4.3-inch screen	4.3-inch screen	4.3-inch screen	4.3 / 7-inch screen
Network options	Ethernet / Wi-Fi / 4G	Ethernet / 3G / 4G	Ethernet / 3G / 4G	Ethernet / 3G / 4G
Protection rating	IP55	IP55	IP55	IP54
Input frequency (Hz)	50 ±3	50 ±3	50 ±3	50 ±3
Operating temperature (°C)	-25 to +55	-25 to +55	-25 to +55	-25 to +55
Dimensions (mm)	Not listed	340 × 151 × 1400	324 × 161 × 1430	430 × 201 × 1508
Cooling	Natural cooling	Natural cooling	Natural cooling	Natural cooling

Installation choices Wall, pedestal and floor-standing configurations provide different enclosure formats for charging-site layouts. Power and cable options The catalog covers 7 to 84kW configurations. Cable length is 4m for the compact 7 / 11 / 22kW unit and 5m for the other listed configurations. Charging management Card and QR-code starting are listed alongside full-charge, energy, time and amount-based charging modes. Screen and network options vary by configuration. Protection functions The series lists voltage, overload, short-circuit, grounding, leakage and temperature protection, with an emergency stop function.

DOCUMENTATION & ENQUIRIES

Product support

Documents & resources

Contact our team for model-specific specifications, manuals and available supporting documents.

Request Product Documents Explore product resources

Questions & answers

Do all configurations have the same protection rating?

No. The 42 / 84kW floor-standing configuration is listed as IP54; the other three configurations are listed as IP55.
